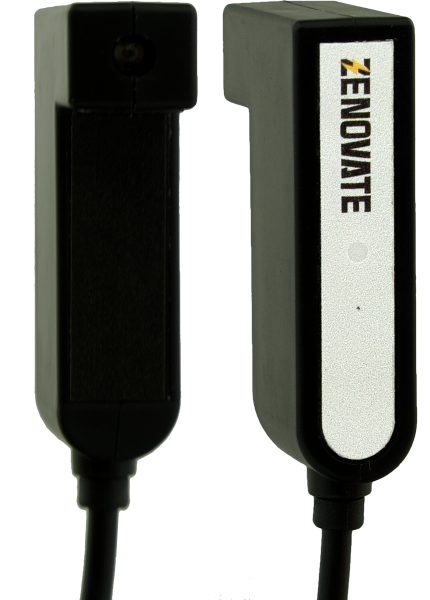

OP-SLIM

OP-SLIM optical probe senses light and IR pulses from LED, converts them into electric pulses.

With US$55 shipping cost, we ship requested free sample world wide.


Spectrum	From IR to light
Connector	Unterminated by default with 10 connectors to choose from
Indicators	1 Indicator with dual display: LED Green: synchronized with the LED light pulses.
Output	Pulse output, synchronized with the LED light pulses.
Power	DC +3.3~5V
Cable	1 meter, extension available
Attachment	Magnetic
Weight	40gr (Attached by double side tape) 80gr (Attached by magnet)
Casing Material	Polycarbonate
Protection Class	IP65
Operating Temperature	-30°C ~ 80°C
