OP-PULSE

OP-PULSE optical probe senses light and IR pulses from LED, converts them into electric pulses.

/images/products/zenovate/OP-PULSE.hero.png

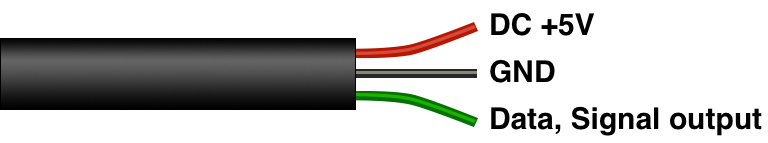

Terminal Definition

OP-PULSE Terminal Definition

Available Connectors

Get a Free Sample

With US$55 shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Spectrum From IR to light
Connector Unterminated by default
with 10 connectors to choose from
Indicators 1 Indicator with dual display:
LED Green: synchronized with the LED light pulses.
Output Pulse output, synchronized with the LED light pulses.
Power DC +3.3~5V
Cable 2 meters(6.5 feet), extension available
Attachment 3M double side tape or Magnetic
Weight 40gr (Attached by double side tape)
80gr (Attached by magnet)
Casing Material Polycarbonate
Protection Class IP65
Operating Temperature -30°C ~ 80°C

dimension

OP-PULSE

OP-PULSE Dimension
