MS-ONE

Meter Power Station

Free of Wiring, Instantly Power-up

/images/products/zenovate/MS-ONE.hero.png

Home powered three-phase output

Detachable meter adaptor - one station fits all meters

  • Designed for meter function testing.
  • Meter test‑run for tariff verification or parameter configuration..
  • Check meters for open or shorted elements.

Safety

  • Instant power-off when meter removed.

Features

  • Single phase powered, three-phase output(testing purpose only, without angles).
  • Support A+/A- load operation by switching.
  • Support forward/reverse current.
  • Support voltage on/off of each phases.
  • Support current on/off of each phases.
  • Support current adjustment
  • Support 3X3 and 3X4 configurations.
  • 6 digital displays provide real-time measurements.

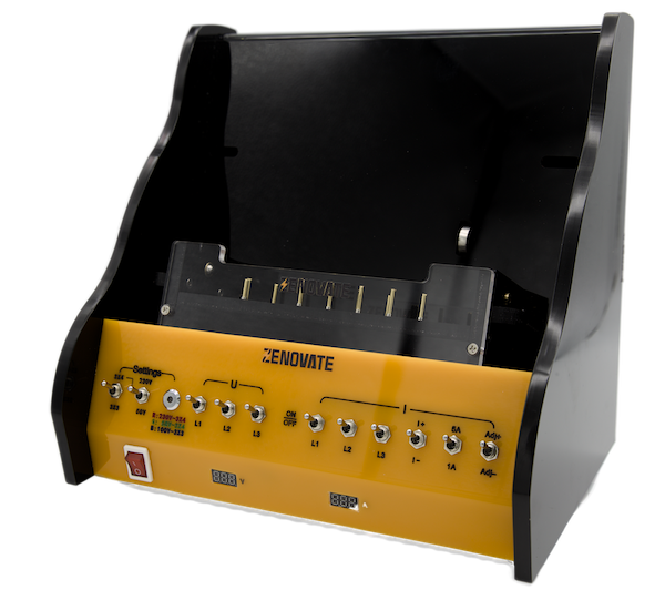

Control Panel

Modular Design

With its detachable adapter, the meter station is compatible with all IEC‑standard meters, offering maximum flexibility.

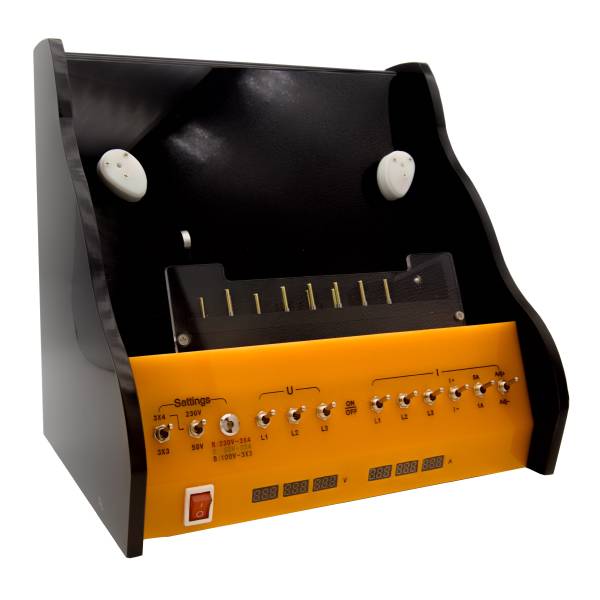

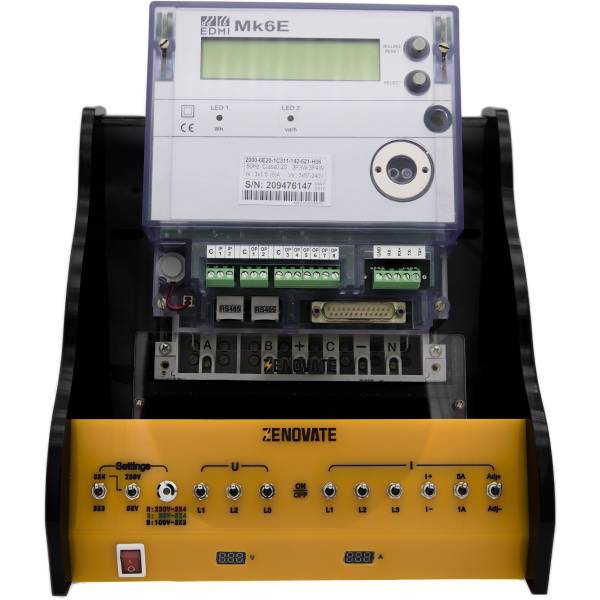

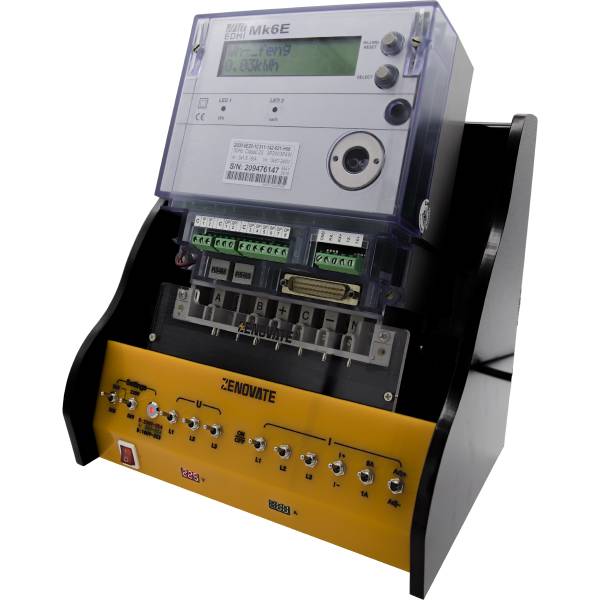

Photos

Contact Us for Price

Email us to get the quote.
Discount price available for bulk purchase.
FAQ Regarding Price and Shipping

Tehnical Specifications
Compatibility IEC 62056-21(IEC 61107) compliant
Max-weight for meter 190mm
Input 220-240v, 50Hz/60Hz, Single Phase
Output 3p4w (58v×3, 230v×3)
3p3w (100v)
Supported Meter Types 3P4W  3P3W  Single-phase
Operational Current 5A, 1A
Current Direction A+  A-
Display LED, 6 displays
Case Material Plexiglass
Module Material Bakelite
Insulation Voltage 2500VAC/1min
Fuse Specification 0.2A/250V
Weight 3,190gr
Module Weight 498.9gr
Dimensions 266x196x252 ( L x W x H )
Operating Temperature -20~70℃
Operating Humidity ≤95%RH
Storage Temperature -20~70℃
Storage Humidity 30~70%
Power Cord Specification 10A/250v, 1.5m

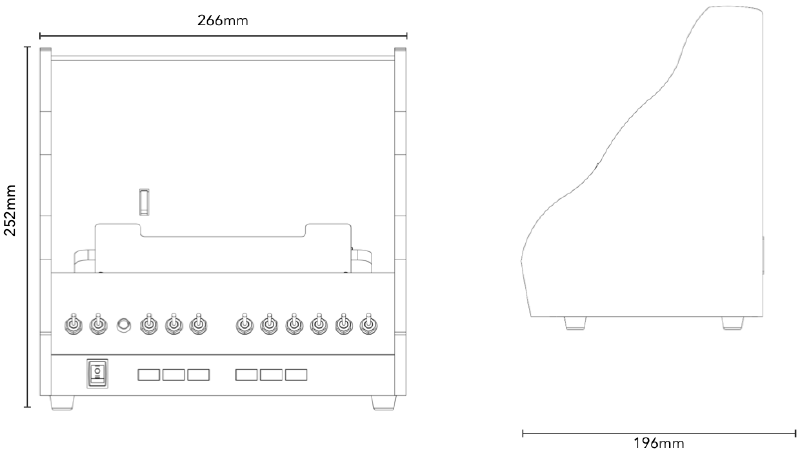

dimension

Dimension
