TP-RF

表用通讯光电头

images/products/TP-RF.hero.png

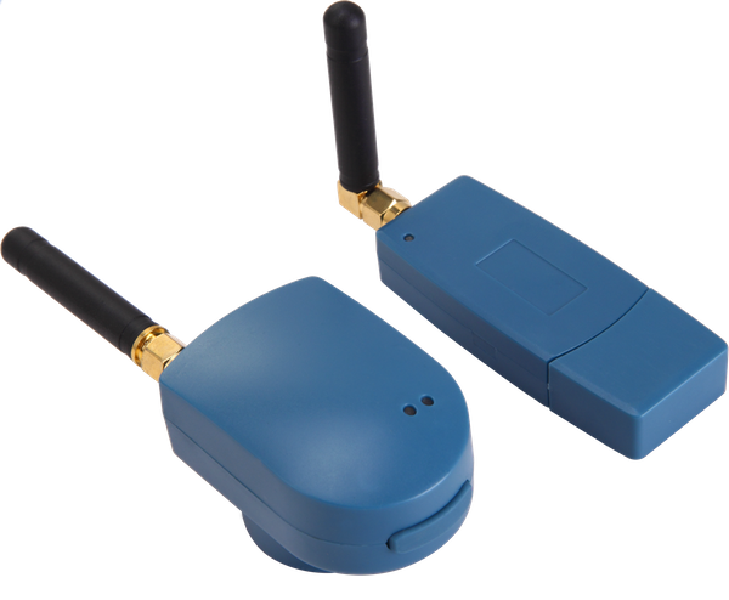

TP-RF Bluetooth Optical Probe serves as an interface, communicating via infrared waves with peripheral devices such as electricity meters, water meters, heat meters, gas meters, or any other device equipped with an optical port.

  • Work with your existing software, no additional integration needed.
  • Supports transparent mode.
  • Automatically detection of baud rate, through support of Mode E & Mode C.
  • High-capacity battery enables reading for up to 100,000 meters on a single charge.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.
  • Transmission power adjustable.

Models

ANSI STANDARD
 TP-RF-ANSI-N, TP-RF-ANSI-S
 符合 ANSI C12.18 标准

ANSI STANDARD
 TP-RF-IEC
 符合 IEC 62056-21 标准

获取报价

如欲获取报价,请通过电子邮件联系我们
批量采购订单,可提供折扣价格
FAQ Regarding Price and Shipping

技术指标

标准 IEC 62056-21(IEC 61107)与DLMS
ANSI C12.18
ANSI C12.18 Type 2
Radio Frequency 400MHz/900MHz/2.4GHz available
通讯速率 300bps ~ 57,600bps
默认波特率 9600bps,支持IEC标准的动态波特率
最大通讯距离 100米
磁性连接 磁性引力:N4.0
符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 红灯:充电种
绿灯:电源开启/电量满
蓝灯:通讯中
电池 锂聚合物电池, 3.7V, 800mAh
充电 4小时可充满(0 - 100%)
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.7 ~ 4.2V
充电器 AC 85 ~ 220V
DC 5V
电缆长度 1米
外壳材料 ABS
防护水平 IP54
操作温度 -15°C ~ 80°C (5°F - 176°F)
操作系统兼容性 iOS
Android
Linux
Microsoft Windows
Mac OS X
Windows CE
USB接口 Mini-USB
USB 2.0
固件 可升级
定制 电缆长度可定制
