TP-485

for Meter Communication

/images/products/zenovate/TP-485.hero.png
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Work with your existing device and software, no additional integration needed.
  • An infrared (IR) optical filter resistant to ambient light without compromising IR sensitivity.
  • Cable exntension available.

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

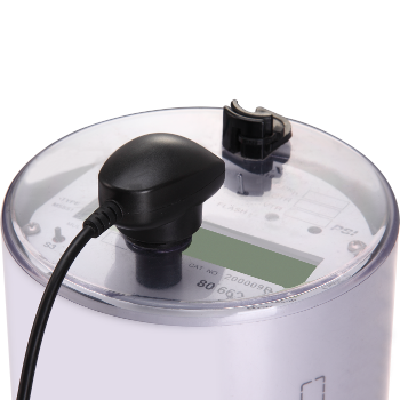

 TP-485-ANSI-N, TP-485-ANSI-S
 符合 ANSI C12.18 标准
/images/products/zenovate/TP-485-ANSI.app.png
ANSI STANDARD

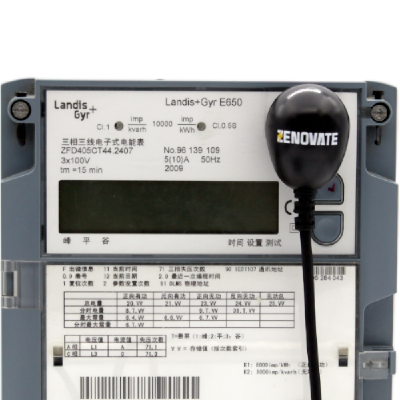

 TP-485-IEC
 符合 IEC 62056-21 标准
/images/products/zenovate/TP-485-IEC.app.png

接头

免费样品

我们提供免费样品，您仅需支付运费。

技术指标
标准 IEC 62056-21(IEC 61107)与DLMS<br />ANSI C12.18<br />ANSI C12.18 Type 2

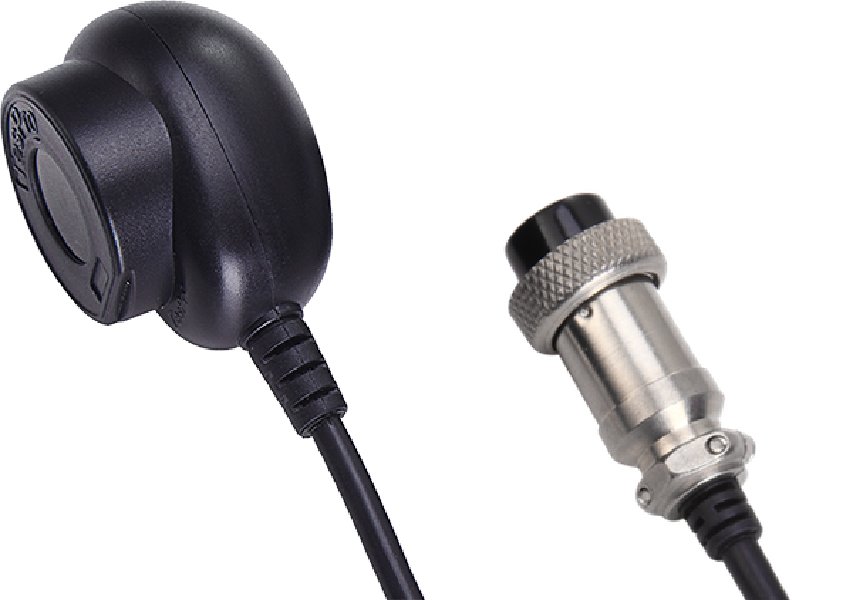

接头 M12插头，4针<br /> 多达10种插头可选
通讯速率 300bps ~ 57,600bps
磁性连接 磁性引力：N4.0<br />符合 IEC 62056-21(IEC 61107) 或 ANSI C12.18 标准
指示灯 1灯双色：<br />红灯：发送<br />绿灯：接收
重量 120gr
IR Radiation 940nm
红外通讯距离 0 ~ 80mm
红外接收波长 700~1100nm
电压 3.3 ~ 5V
电缆长度 2米 (6.5 英尺)，电缆长度可定制
外壳材料 聚碳酸脂
防护水平 IP54
操作温度 -35°C ~ 80°C (-31°F - 176°F)

尺寸

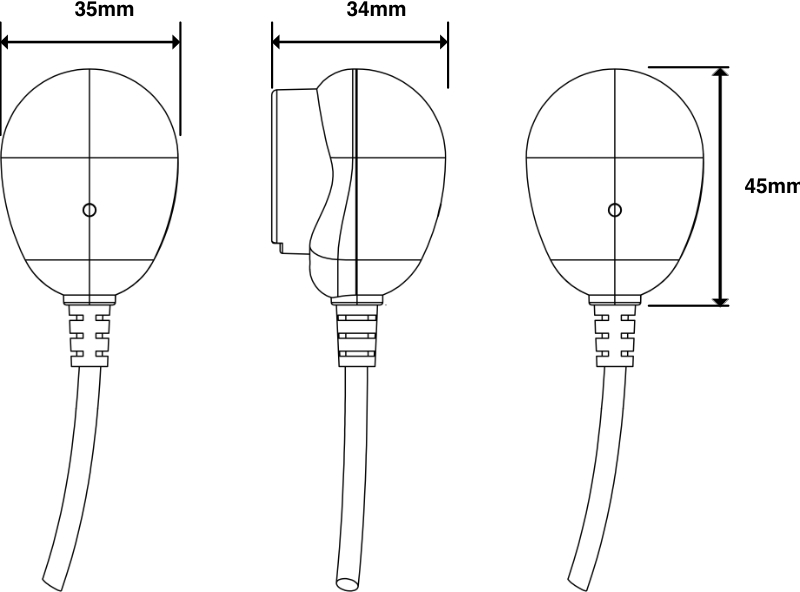

TP-485-IEC

TP-485-IEC Dimension

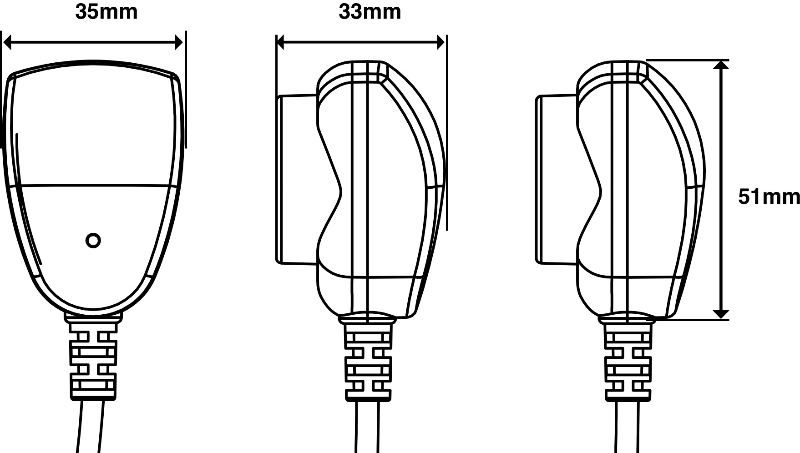

TP-485-ANSI

TP-485-ANSI Dimension
