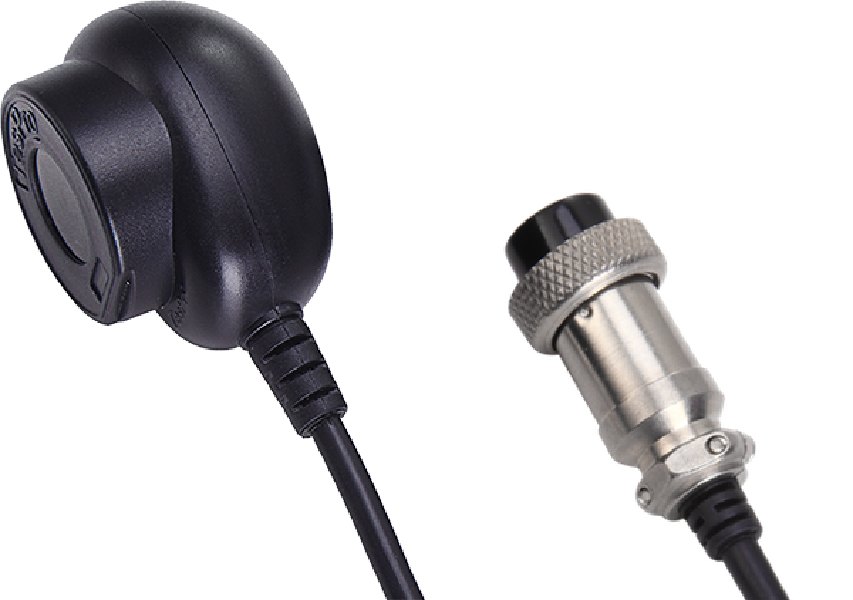

TP-TTL

Optical Probe for Meter Communication

/images/products/zenovate/TP-TTL.hero.png
  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability. It remains steadfast even in demanding working environments.
  • Work with your existing device and software, no additional integration needed.
  • An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.
  • Cable customization available.

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

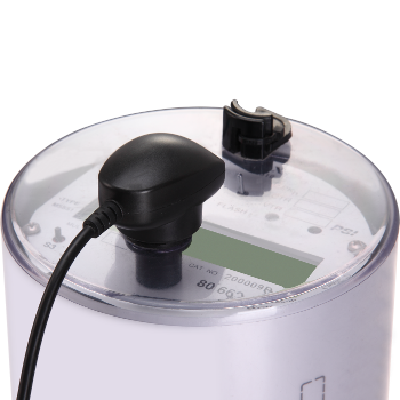

 TP-TTL-ANSI-N, TP-TTL-ANSI-S
 Complied with ANSI C12.18
/images/products/zenovate/TP-TTL-ANSI.app.png
ANSI STANDARD

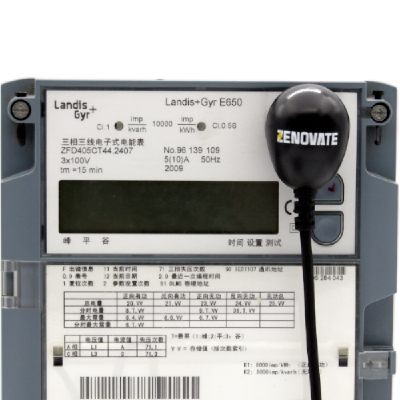

 TP-TTL-IEC
 Complied with IEC 62056-21
/images/products/zenovate/TP-TTL-IEC.app.png

Available Connectors

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)<br />ANSI C12.18 Type 2<br />DLMS
Connector M12 circular connector with 4 pins<br />Customizable upon request
Communication Speed 300bps ~ 57,600bps
Magnet Attachment Magnetic Force N4.0<br />Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:<br /> LED Red: Transmitting<br /> LED Green: Receiving
Weight 120gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.3 ~ 5V
Cable Length 2 meters (6.5 inch)<br />Cable extension available
Casing Material Polycarbonate
Water Proof IP54
Operating Temperature -35°C ~ 80°C (-31°F - 176°F)
Customization Cable extension available.

dimension

TP-TTL-IEC

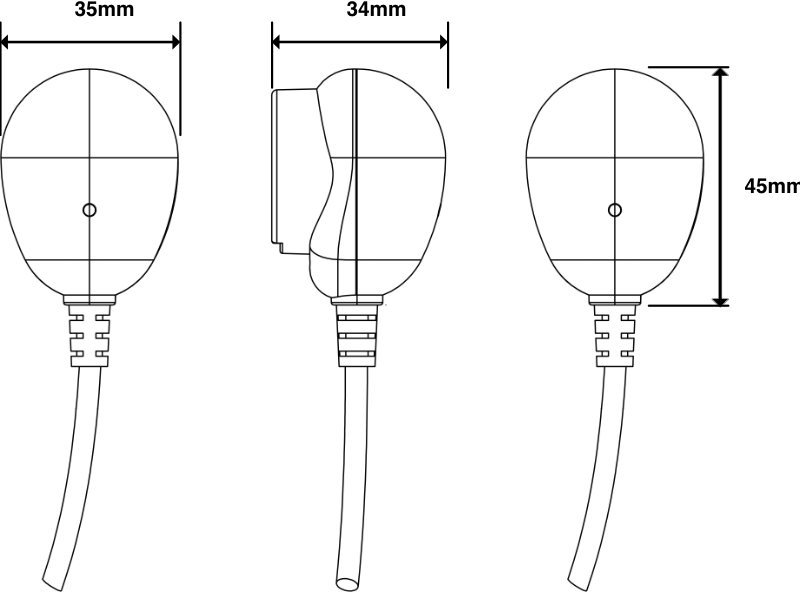

TP-TTL-IEC Dimension

TP-TTL-ANSI

TP-TTL-ANSI Dimension
