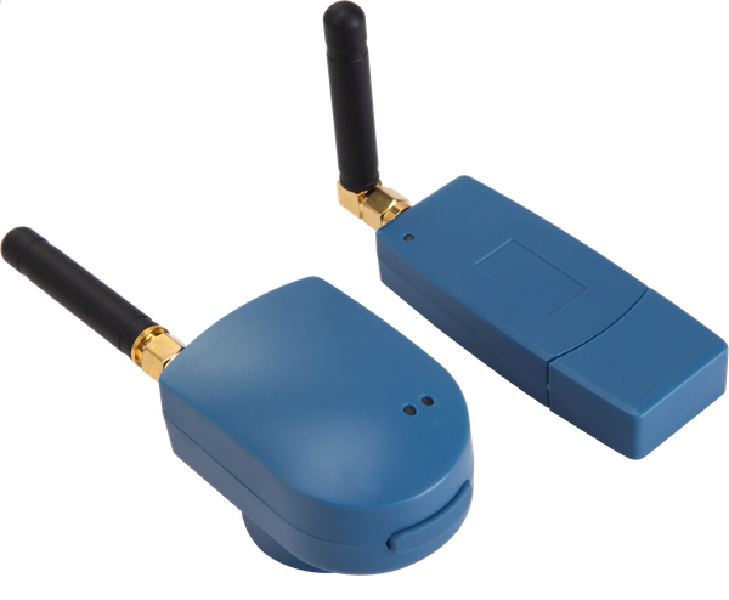

TP-RF Wireless Optical Probe for Meter Communication

TP-RF Bluetooth Optical Probe serves as an interface, communicating via infrared waves with peripheral devices such as electricity meters, water meters, heat meters, gas meters, or any other device equipped with an optical port.

Work with your existing software, no additional integration needed.
Supports transparent mode.
Automatically detection of baud rate, through support of Mode E & Mode C.
High-capacity battery enables reading for up to 100,000 meters on a single charge.
An infrared (IR) optical filter resists to ambient light without compromising IR sensitivity.

Models

TP-RF-ANSI-N, TP-RF-ANSI-S

Complied with ANSI C12.18

TP-RF-IEC

Complied with IEC 62056-21

Contact Us for Price

Email us to get the quote.
Discount price available for bulk purchase.
FAQ Regarding Price and Shipping

Tehnical Specifications


Standard	IEC 62056-21(IEC 61107) ANSI C12.18 Type 2 DLMS
Radio Frequency	400MHz/900MHz/2.4GHz available
Communication Speed	300bps ~ 57,600bps
Default Baud Rate	9600bps, supports IEC dynamic baud rate
Max Communication Range	100 Meters
Magnet Attachment	Magnetic Force N4.0 Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators	LED Red: Charging LED Green: Power On / Battery Full LED Blue: Communication in progress
Battery	Li-Po, 3.7V, 800mAh, 20 hours
Battery Charging	4 Hours (From 0 to 100%)
IR Radiation	940nm
IR Communication Distance	0 ~ 80mm
IR Sensor Wavelength	700~1100nm
Voltage	3.7 ~ 4.2V
Charger	AC 85 ~ 220V DC 5V
Cable Length	1 meters (3 feet 3⅜ inch)
Casing Material	ABS
Water Proof	IP54
Operating Temperature	-15°C ~ 80°C (5°F - 176°F)
OS compatibility	iOS Android Linux Microsoft Windows Mac OS X Windows CE
USB & Driver	USB 2.0 standard
Firmware	Upgradable
Customization	Cable extension available
