OP-BT

Optical Probe for Meter Communication

/images/products/zenovate/OP-BT.hero.png

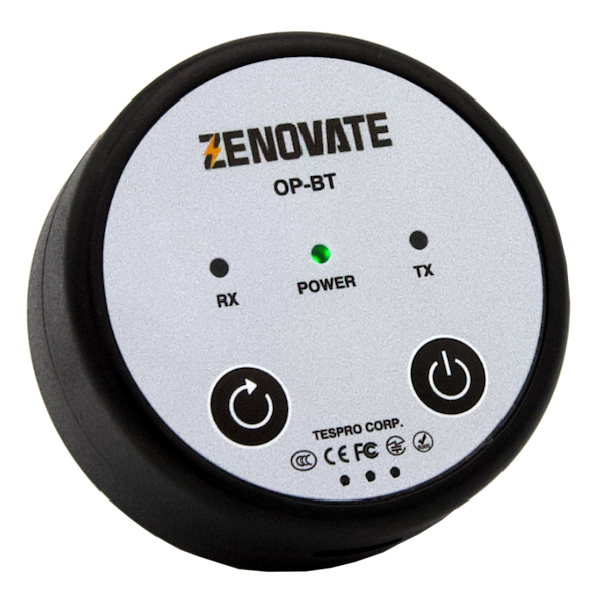

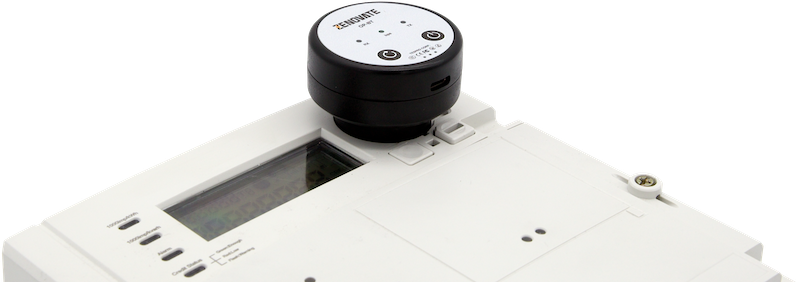

OP-BT Bluetooth Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Supports transparent mode.
  • Automatically detects baud rate, by support of Mode E & Mode C.
  • High-capacity battery guarantees 100-day in hibernate mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.
  • Transmission power adjustable.
  • Battery life extended with battery protection feature.
  • Supports bluetooth renaming.
  • Simple firmware upgrade by bluetooth or USB cable.
Bluetooth 5.0
BLE
75 Working Hours
10,000 Meters/single charge


Support Android, iOS, Windows, MacOS, Linux

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

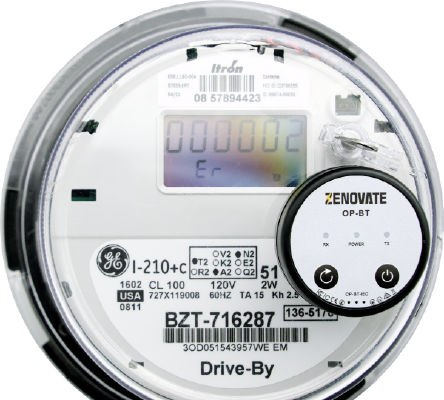

 OP-BT-ANSI
 Complied with ANSI C12.18
ANSI STANDARD

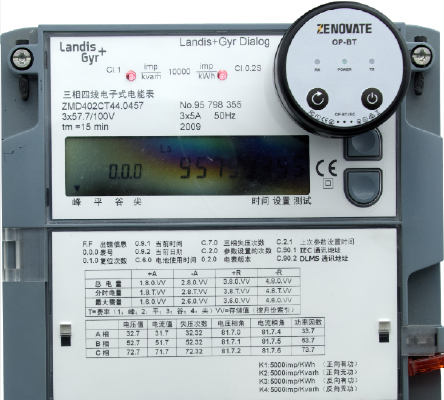

 OP-BT-IEC
 Complied with IEC 62056-21

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)<br />ANSI C12.18 Type 2<br />DLMS
Bluetooth Standard Bluetooth 5.0<br />BLE+SPP<br />2.4G
Communication Speed 300bps ~ 57,600bps
Default Baud Rate 9600bps, supports IEC dynamic baud rate
Max Communication Rang 10 Meters
Magnet Attachment Magnetic Force N4.0<br />Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 3 (Power/Battery, Bluetooth Status, RX, TX)
Weight 59gr
Battery Li-Po, 3.7V, 1050mAh
Battery Charging 4.5 Hours<br />2.5 Hours(fast charge)
Standby Hours 72 Hours
Working Hour 68 Hours
Continuous Communication 58 Hours
Hibernate Mode 100 Days
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.7 ~ 4.2V
Power Adapter AC 85 ~ 220V<br />DC 5V
Cable Length 1 meters (3 feet 3⅜ inch)
Casing Material Polycarbonate

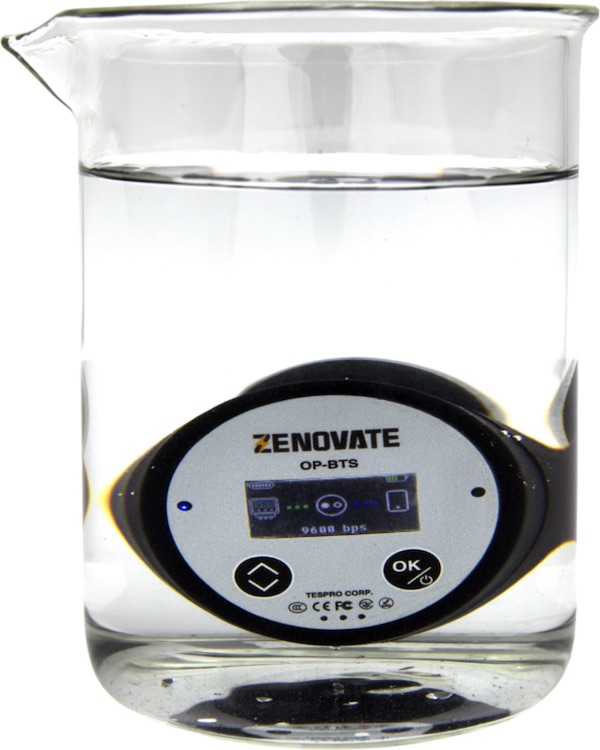

Protection Class IP67
Operating Temperature -30°C ~ 80°C (-22°F - 176°F)
OS compatibility iOS<br />Android<br />Linux<br />Microsoft Windows<br />Mac OS X<br />Windows CE
USB & Driver USB Type-C<br />2.0 standard
Firmware Upgradable<br />via bluetooth or USB cable

dimension

OP-BT-IEC

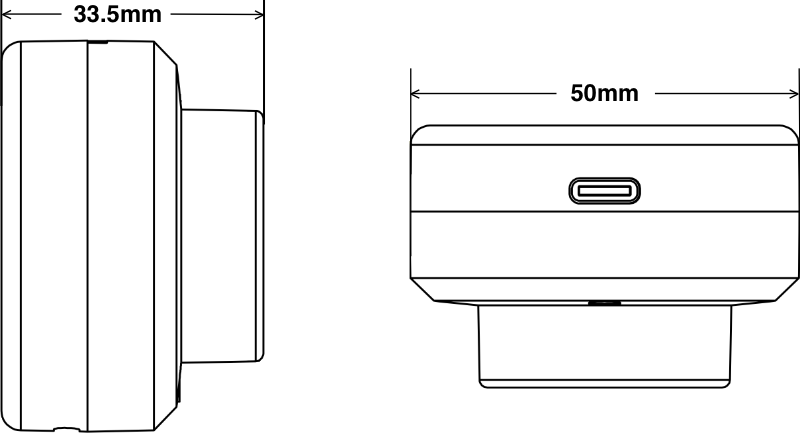

OP-BT-IEC Dimension

OP-BT-ANSI

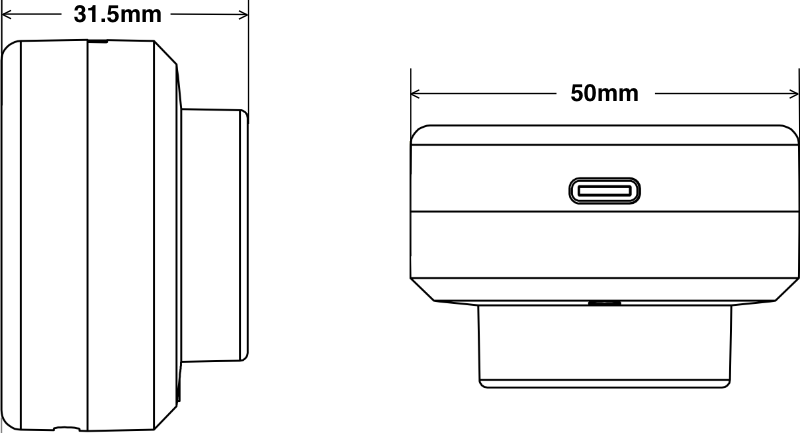

OP-BT-ANSI Dimension
