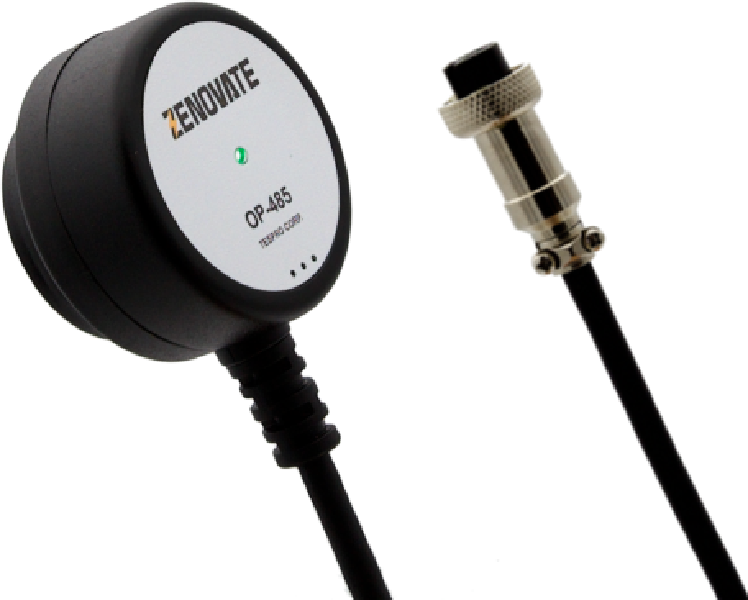

OP-485

Optical Probe for Meter Communication

/images/products/zenovate/OP-485.hero.png

OP-485 Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

  • Ultrasonic welding ensures a robust housing for the product, enhancing durability and reliability.
  • Work with your existing device and software, no additional integration needed.
  • Supports transparent mode.
  • The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.

Certifications

Models

What's the different between ansi and iec standard?

Understanding the Differences Between IEC 62056-21 and ANSI C12.18

ANSI STANDARD

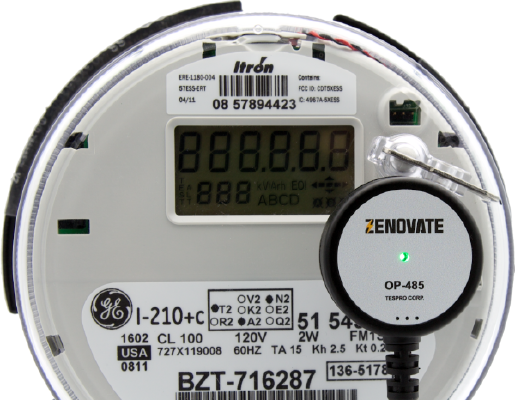

 OP-485-ANSI
 Complied with ANSI C12.18
/images/products/zenovate/OP-485-ANSI.app.png
ANSI STANDARD

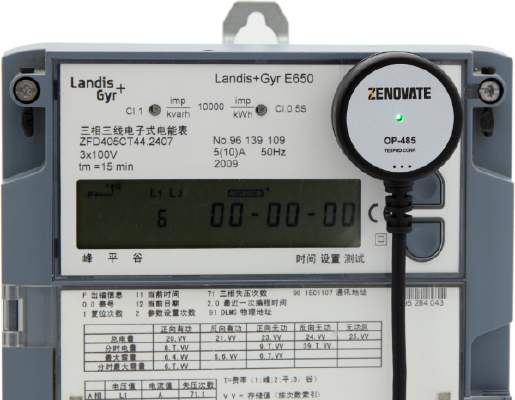

 OP-485-IEC
 Complied with IEC 62056-21
/images/products/zenovate/OP-485-IEC.app.png

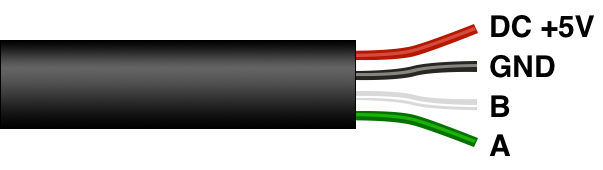

Available Connectors

Get a Free Sample

With CA$68(US$50) shipping cost, we ship requested free sample world wide.

Tehnical Specifications
Standard IEC 62056-21(IEC 61107)<br />ANSI C12.18 Type 2<br />DLMS
Connector M12 circular connector with 4 pins <br />12 connectors available to choose from
Communication Speed 300bps ~ 57,600bps
Magnet Attachment Magnetic Force N4.0<br />Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators 1 Indicator with dual display:<br />LED Red: Transmitting<br/>LED Green: Receiving
Weight 85gr
IR Radiation 940nm
IR Communication Distance 0 ~ 80mm
IR Sensor Wavelength 700~1100nm
Voltage 3.3 ~ 5V
Cable Length 2 meters (6.5 inch)<br />cable extension available
Casing Material Polycarbonate
Protection Class IP67
Operating Temperature -30°C ~ 80°C (-22°F - 176°F)

dimension

OP-485-IEC

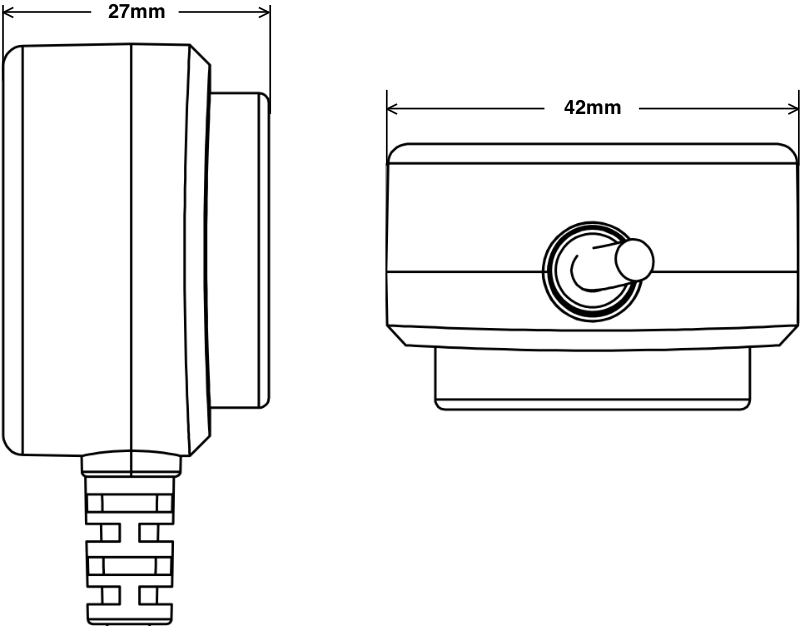

OP-485-IEC Dimension

OP-485-ANSI

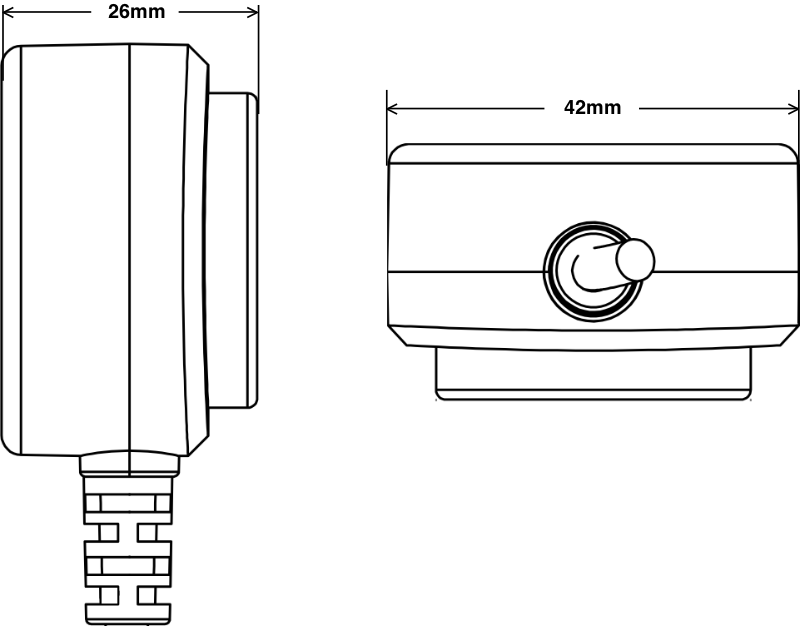

OP-485-ANSI Dimension
