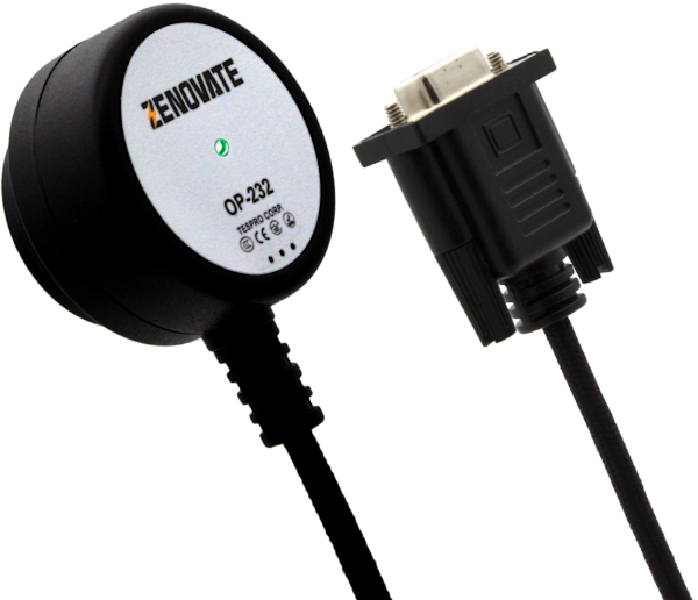

OP-232 Optical Probe for Meter Communication

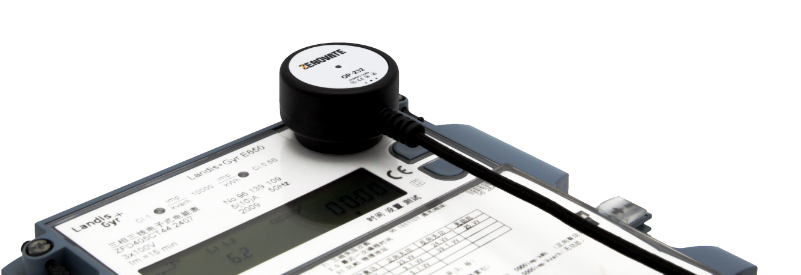

OP-232 Optical Probe serves as an interface, communicating via infrared waves with utility meters, or any other device equipped with an optical port.

Ultrasonic welding ensures a robust housing for the product, water proof and dust proof.
Nylon braided cable enhancing durability and reliability.
No external power supply required.
Work with your existing device and software, no additional integration needed.
Supports transparent mode.
The infrared optical filter can block ambient light interference without compromising the device’s sensitivity to IR.

Models

What's the different between ansi and iec standard?

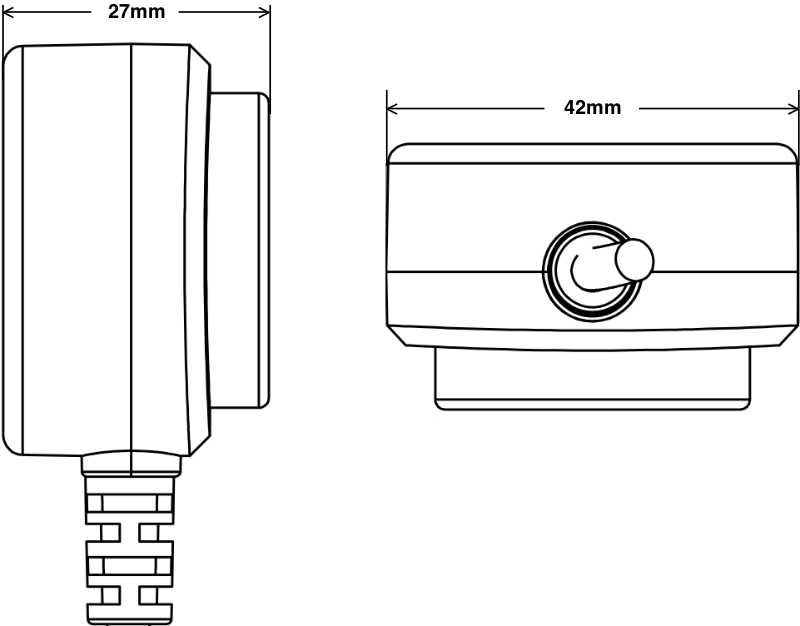

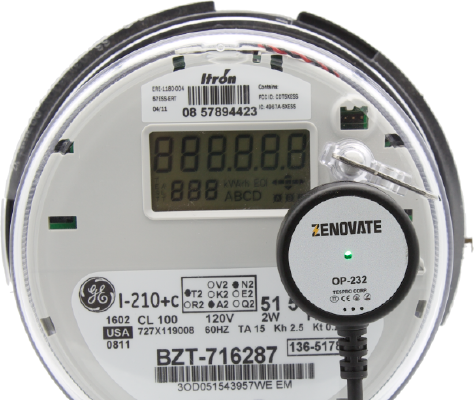

Complied with ANSI C12.18
images/products/zenovate/OP-232-ANSI.app.png

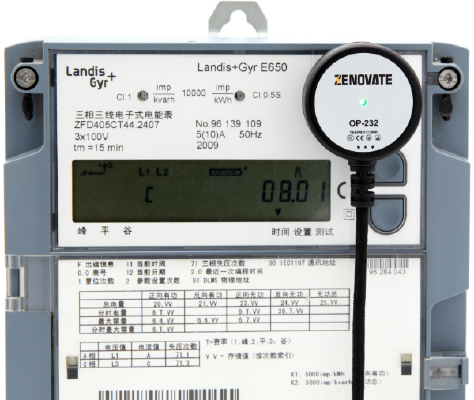

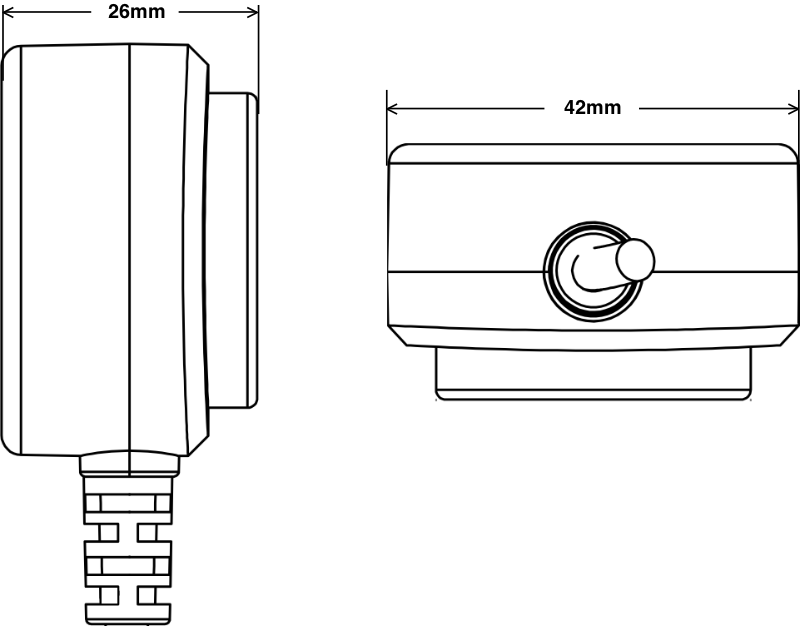

Complied with IEC 62056-21
images/products/zenovate/OP-232-IEC.app.png

With CA$68(US$50) shipping cost, we ship requested free sample world wide.


Standard	IEC 62056-21(IEC 61107) ANSI C12.18 Type 2 DLMS
Connector	RS232-DB9 integrated connector
Communication Speed	300bps ~ 57,600bps
Magnet Attachment	Magnetic Force N4.0 Complied with IEC 62056-21(IEC 61107) or ANSI C12.18
Indicators	1 Indicator with dual display: LED Red: Transmitting LED Green: Receiving
Weight	75gr
IR Radiation	940nm
IR Communication Distance	0 ~ 80mm
IR Sensor Wavelength	700~1100nm
Voltage	3.3 ~ 5V
Cable Length	2 meters (6.5 inch) Cable extension available
Casing Material	Polycarbonate
Protection Class	IP67
Operating Temperature	-30°C ~ 80°C (-22°F - 176°F)
